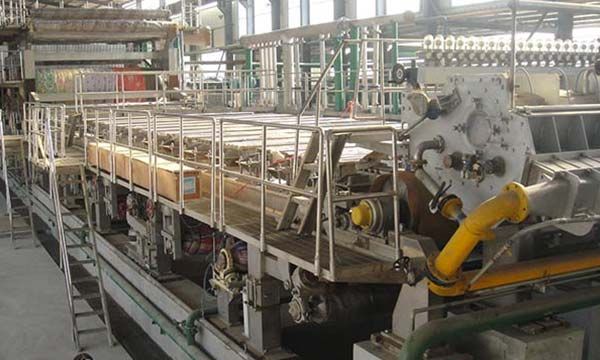

3200mm Fourdrinier Corrugated Paper Machine

Raw material: waste cardboard paper, waste newspaper etc.

Output paper: Corrugated paper，Kraft paper , carton paper

Output weight: 110-180gsm

Тel:+86-13513810211 +86-15639109282

Products List

nodata

Specification

Paper width: 3200mm

Capacity: 70-80T/D

Working speed: 80-130m/min

Design speed: 150m/min

Rail gauge: 4300mm

Drive way: AC frequency conversion, section drive

Density of wire: 0.33-0.4%

Paper dryness of wire part: 18-20%

Paper dryness of press part: 40-42%

Dryness of finish paper: 95%

Pulp formation type: pressure mould former

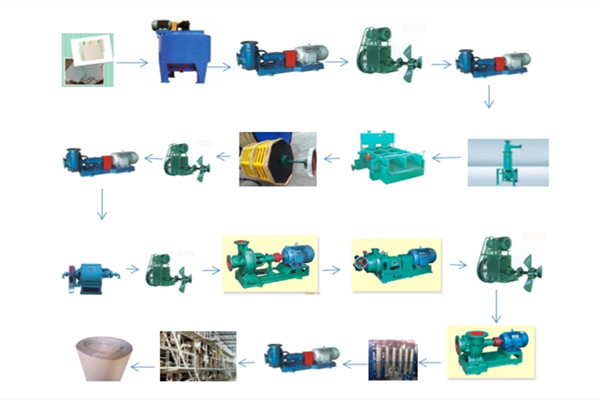

The Corrugated Paper Production Line
