Specification
Item parameter model: ZGS1, ZGS2, ZGS3, ZGS5, ZGS8, ZGS10, ZGS15
Effective volume (M2): 1, 2, 3, 5, 8, 10, 15
Production capacity (t/d): 3-4, 6-8, 9-12, 15-20, 24-32, 30-45, 40-80
Pulp concentration(%): 8~15%
Cell body diameter (mm): 1200, 1550, 1800, 2200, 2500, 2800, 3500

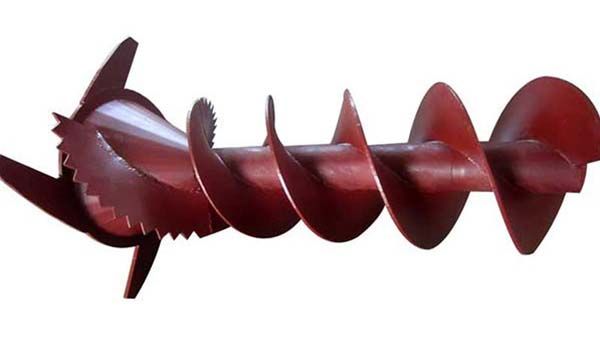

Impeller diameter (mm): 440, 440, 680, 720, 820, 860, 1050
Impeller rotation speed (r/min): 440, 440, 400, 380, 340, 320, 280
Pulp discharging door diameter (mm): 108, 159, 219, 219, 219, 250, 250
Dilution door diameter (mm): 50, 89, 89, 89, 108, 108, 108
ZGS Energy-saving type Model: Y160L-6, Y180L-6, Y200L2-6, Y225M-6, Y280S-6, Y280M-6, Y315S-6
Power (kw): 11, 15, 22, 30, 45, 55, 75
